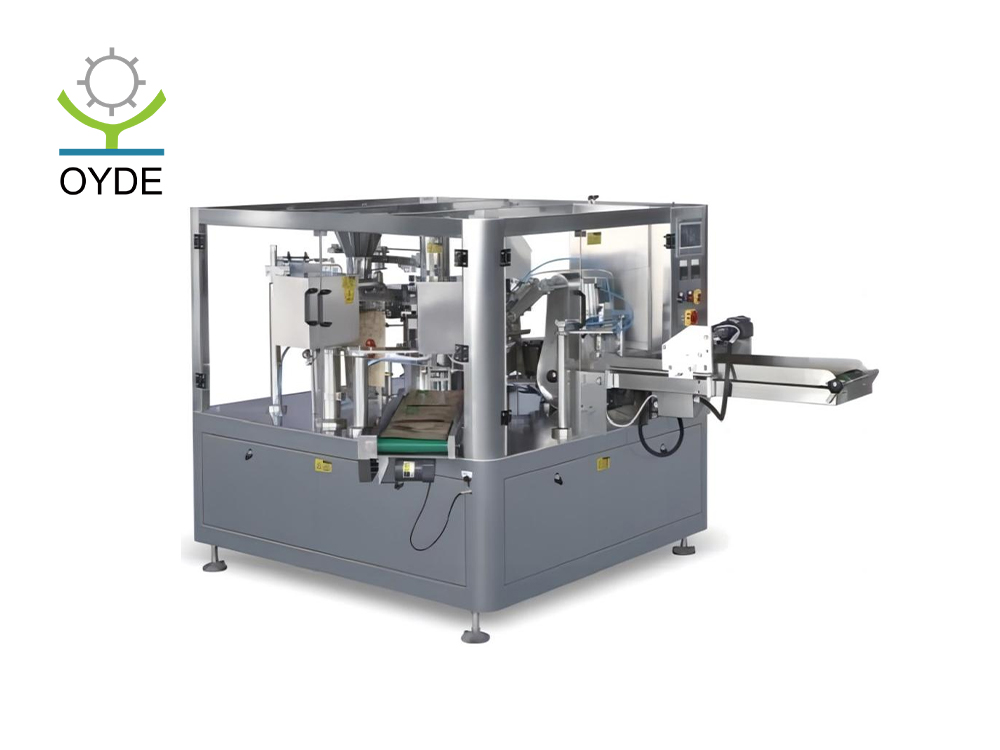

Bag packaging machine replaces packing by hands to achieve packaging automation for enterprises. Operators only need to place hundreds of bags in the bag picking section waiting for mechanical gripper to automatically pick up, print the date, open the bags, signal the measuring device to measure and drop materials, seal, and convey.
Bag packaging machine replaces packing by hands to achieve packaging automation for enterprises. Operators only need to place hundreds of bags in the bag picking section waiting for mechanical gripper to automatically pick up, print the date, open the bags, signal the measuring device to measure and drop materials, seal, and convey. Customers can also add detailed functions such as door emergency stop, automatic card feeding, and abnormal discharge based on product packaging requirements. The entire packaging process does not require manual operation, effectively improving production efficiency for the company, saving labor and management costs so as to sianificantly reduce costs.
| Model | OYDE-YT8-200 |
| Bag length | 15-30cm |
| Bag width | 10-20cm |
| Bag type | PE bag, composite bag, handbag, self-supporting bag, bottom sealing bag, side sealing bag, zipper bag |
| Bag range | Width: 70-240mm Length: ≤420mm |
| Machine material | Food Grade SS304 |
| Packaging material weight range | 200 grams - 1500 grams |
| Packing speed | 10-50 bales/min (the speed is determined by its own filling weight and saturation) |
| Gross power | 3KW (without matching) |
| Power source | Three-phase four-wire AC380V 50Hz |
| Compressed air | Air consumption 0.3m³/min Pressure: 0.8 mpa (compressed air and dry machine provided by the user) |
| Weighing accuracy | ≥99.5% |
| Weighing range | 30g-2000g |
| Number of work stations | The maximum working station is 8 stations |
| Voltage | 380V(Customized) |
| Dimension(L*W*H) | 370cm*180cm*420cm(Customized) |
This can be applied to various packaging materials such as paper-plastic, plastic-plastic, alumium-plastic, PE, etc. with low consumption. Pre-made packaging bags are used.
